Fabrication, Erection and commissioning of overland belt conveyor at Udaipur Cement Ltd., Udaipur, Rajasthan
- This is a turn-key EPC project executed by LNVT.
- LNVT successfully installed and commissioned the 5,698.5 m long Overland Belt Conveyor (OLBC) conveying Crushed Limestone from Mines to the Plant, located at Udaipur Cement Works Limited, Dabok, Rajasthan, with a conveying capacity of 1100 TPH (Design).
- The Steel Cord Belt is run through tubular pipe triangular gantry and supported on Y support with pipe trestles.
- OLBC passes through uneven terrain both Uphill and Downhill, crosses National Highways, Kacha roads, small canals, and rivers, Electrical lines namely HT & LT Lines, passes through trenches and several villages taking into consideration all safety aspects, norms, and government regulations. OLBC discharges material to dump hopper located in the plant.
- By means of installing tubular pipe gantry, it is possible to make the horizontal curve. In OLBC, we have a 1 deg. horizontal curve which is as per layout requirement.
OLBC PARAMETERS
Capacity of material handled | : 1000 TPH (Operating); 1100 TPH (Design) |
Length of OLBC | : 5,698.5 m |
Maximum lump size | : 65 mm |
Total number of Trestles | : 234 no’s |
Belt Width | : 800 mm |
Belt Speed | : 3.90 m/s |
Drive | : 355 kW x 3 No’s |
Troughing Angle | : 45 deg. |

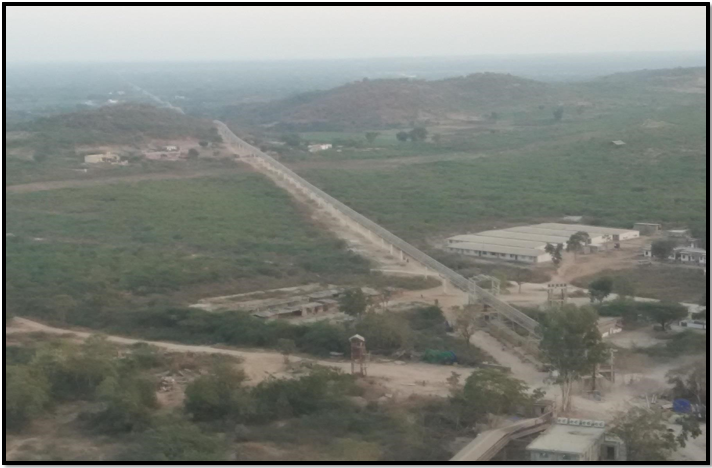

Bird’s Eye View of OLBC
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/Bird’s-Eye-View-of-OLBC.png)

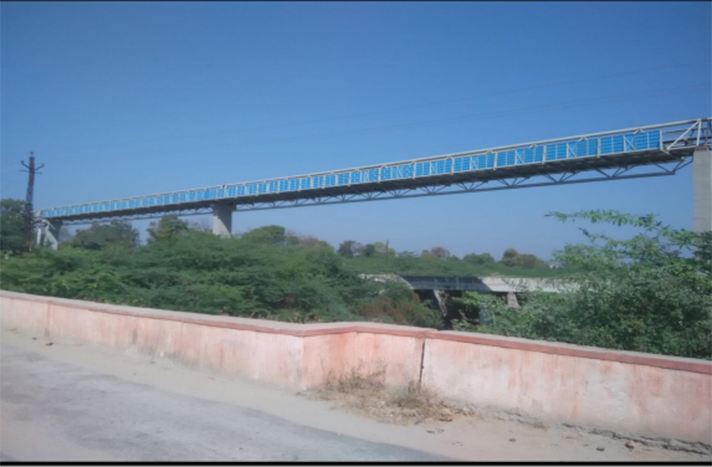

Gantry & Protection Bridge at NH-Road
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/Gantry-Protection-Bridge-at-NH-Road-Crossings-1.png)

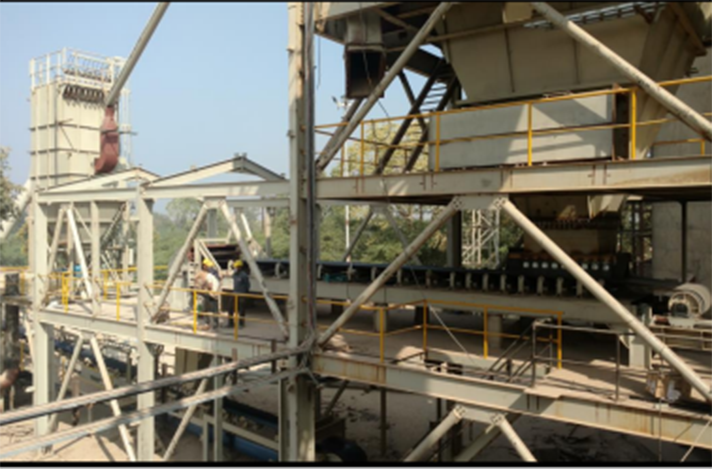

Hopper discharge to Belt feeder
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/Hopper-discharge-to-Belt-feeder-211-BC04.png)

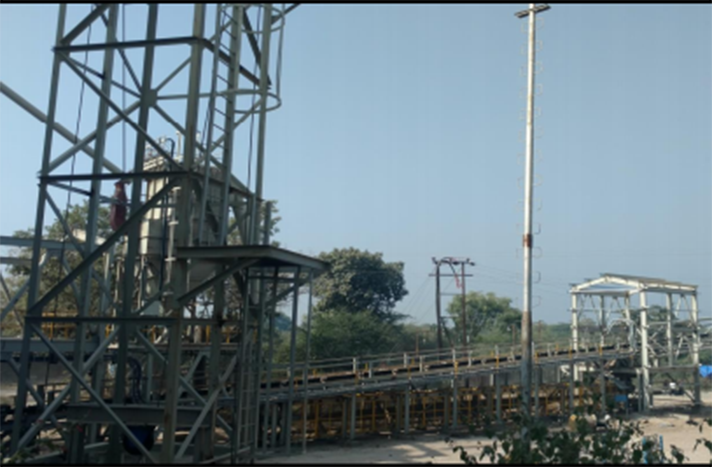

OLBC at Tail End (Elevation)
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/OLBC-at-Tail-End-Elevation.png)

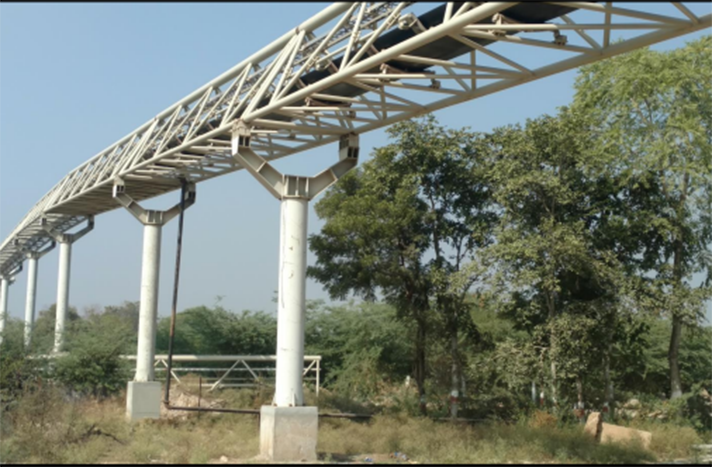

OLBC gantry mounted on Trestles
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/OLBC-gantry-mounted-on-Trestles.png)

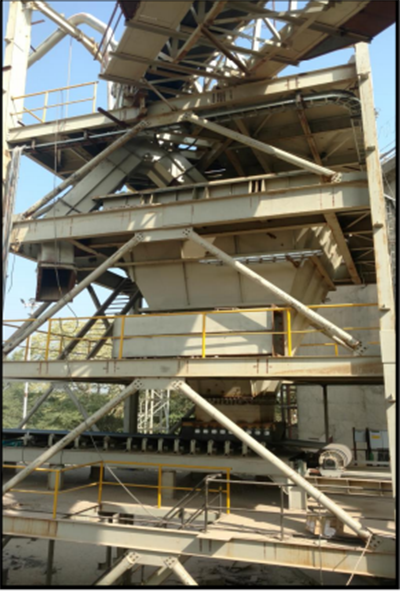

Discharge to 100t
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/211-BC02-discharge-to-100t-1.png)

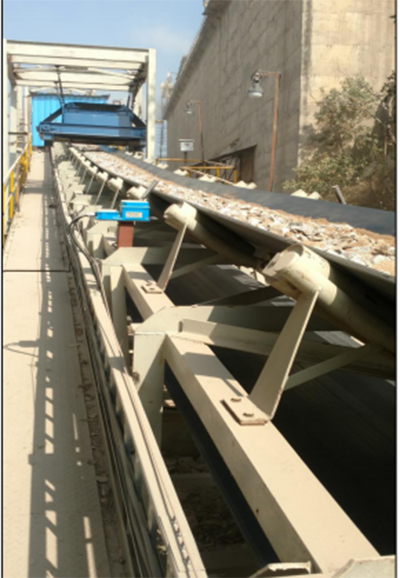

Magnetic Separator
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/211-BC02-with-Magnetic-Separator.png)

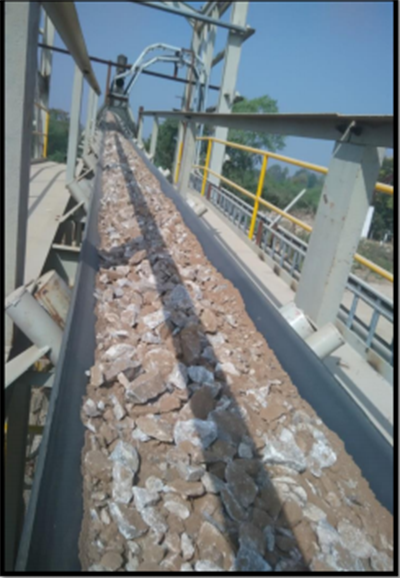

Limestone conveyed across the belt
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/Limestone-conveyed-across-the-belt.png)
.
![](https://www.lnvtechnology.com/wp-content/uploads/2017/01/olbc-at-trench.png)
