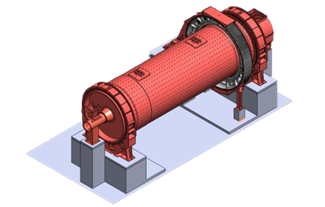

Slide shoe Mill


  • The slide shoe mill runs with two self-aligning and hydro dynamically lubricated slide shoe bearings.
  • Drive end of the slide shoe assembly holds the mill in axial direction, the other side can move freely in axial direction to allow for longitudinal thermal expansion and contraction of the mill body.
  • The bearings are lubricated by lubrication unit. Both bearings covered by shoe guard & made in position using adjustable Tie rod arrangement.
  • The mill operated in either open or closed circuit.
  • The feed chute is adjustable by horizontal moment for easy maintenance.

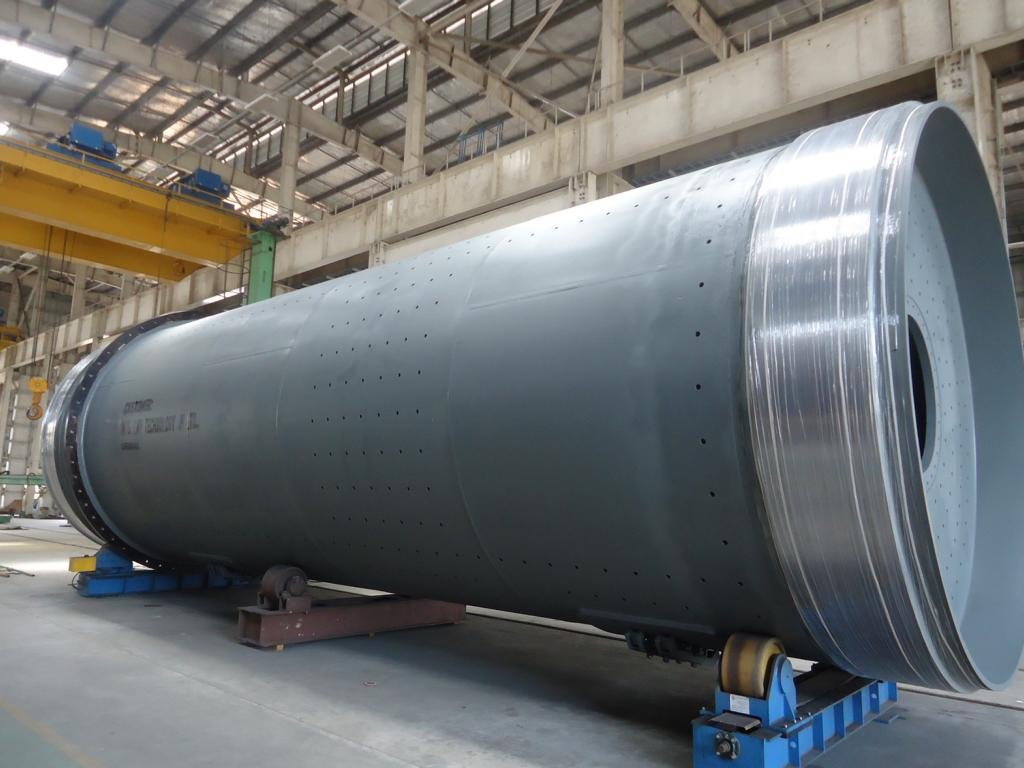

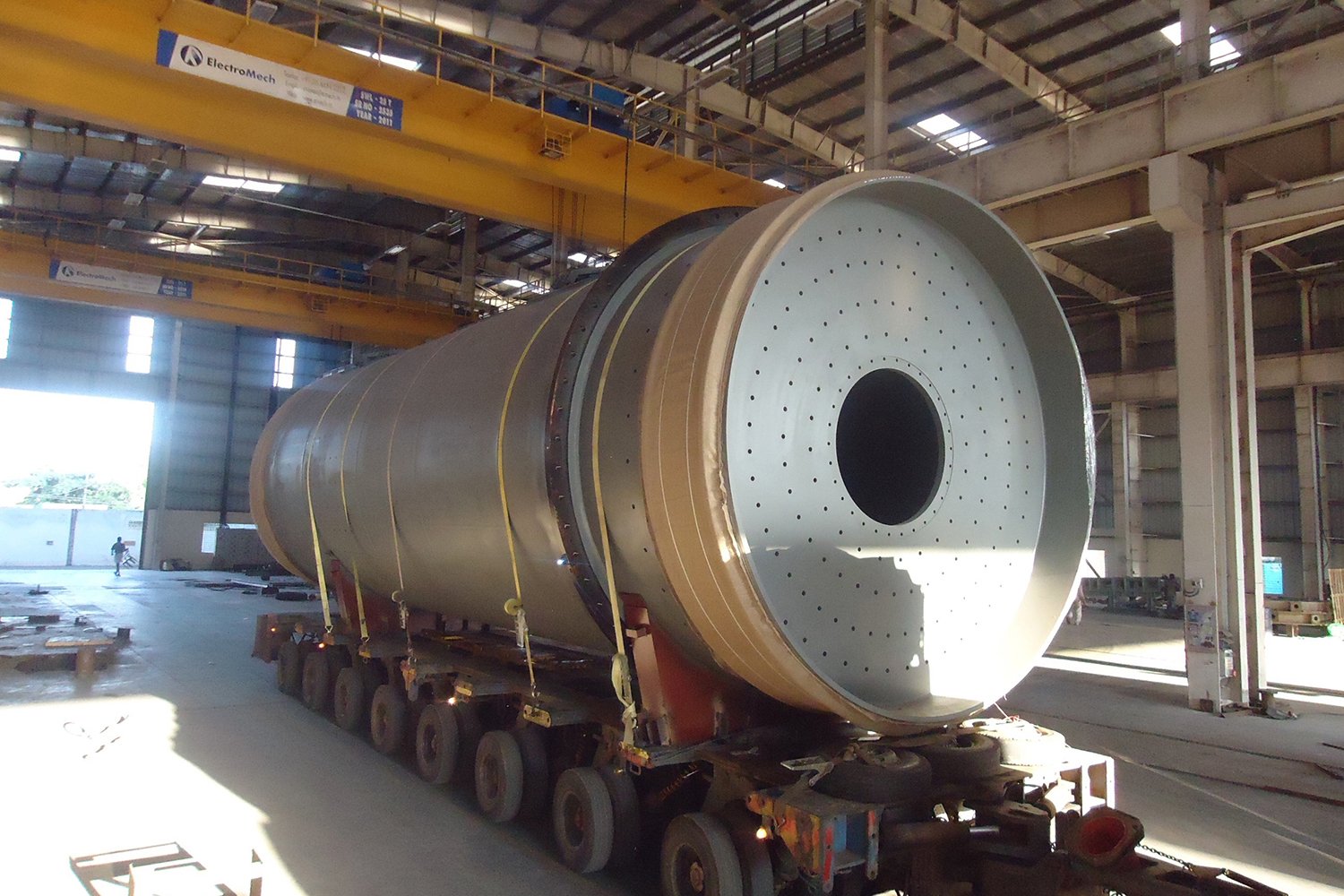

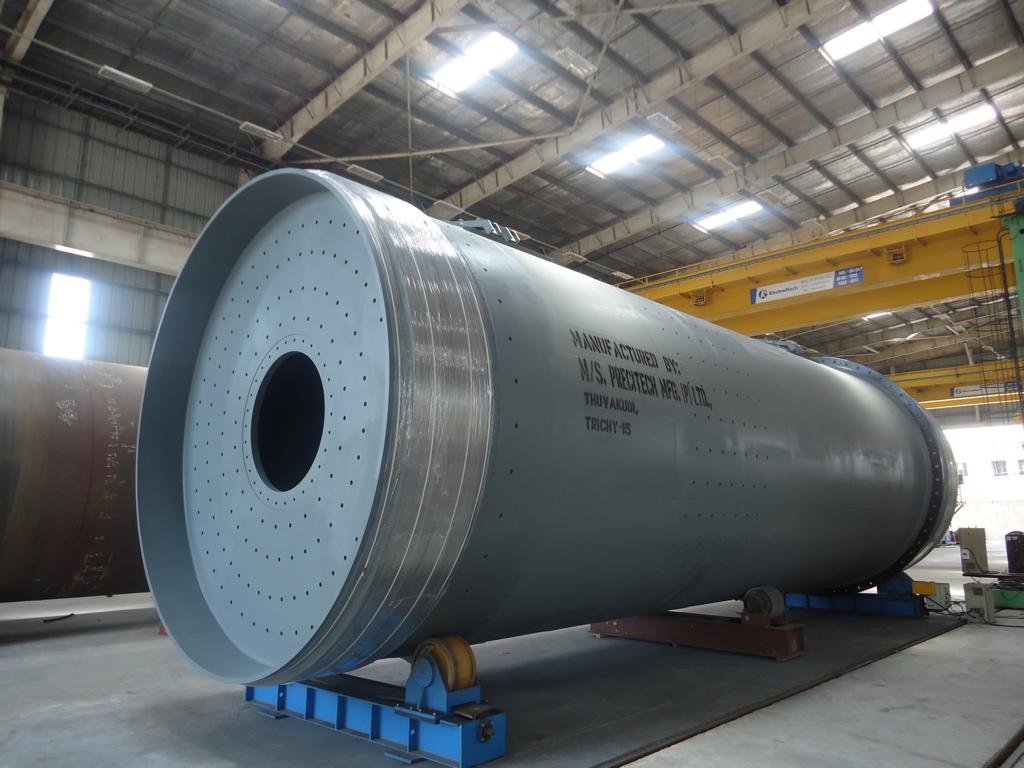

Slide Shoe Mill Manufactured by LNVT for Mangalam cements
